Faraday Tents








Access the shielded Faraday tent
Typically the access point is made out of magnetic strips covered with electrically conductive layers of textile. The magnetic closure ensures superb electrical contact after the tent is closed. When necessary, the entrance can also be equipped with conductive Velcro strips.

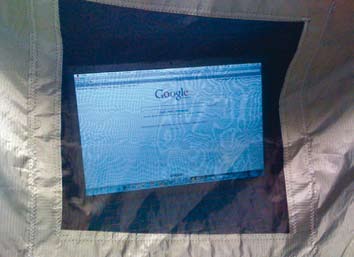

Maintain visual contact with your experiment
A double layer of fine conductive mesh can be installed allowing you to maintain visual contact between the inside or outside of the tent

Applications are typically EMC experiments, RF measurements, mobile military / forensic activities and personal protection in the field. Faraday tents offer mobile solutions for only a fraction of the price compared to a conventional Faraday cage.

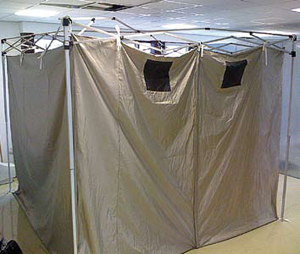

The RF shielded Faraday tents are manufactured from strong and highly conductive textile. The tents are standardly delivered with multiple ropes for easy mounting to the ceiling or with a self-standing frame
Cost effective instant Faraday tent
EMI/RFI Shielded Faraday Tent
Applications
Computer and Cell Phone
Forensics
Field Military / Embassy use
Secure / TEMPEST
communication
Radar jammer protection
Electromagnetic Allergy /
Electro smog
Pre-compliance Testing
Temporary EMI Shielding
Reverberation chamber (RVC)
Mode-stirred chamber (MSC)
Advantages
Easy to mount and move,
mobile laboratory
Any size possible
Optionally supplied with a
rigid reinforced floor

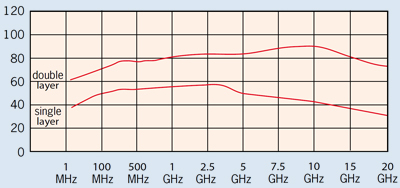

Single layer tent 40-60 dB
up to 22.5 GHz
Double layer tent 70-90 dB
up to 22.5 GHz
Options
Rigid floor for heavy load
Easy mounting frame
Shielded power filters
Shielded ventilation/ AC
Cable sleeve for entry of
filtered cables
Many other options on request
Standard available sizes: All
measurements given in the table
are outside dimensions
Small  2 x 2.5 x 2.3 meters

Medium 2 x 3 x 2.3 meters

Large 2.5 x 3 x 2.3 meters

Extra large 3 x 2 x 2.3 meters
